The D6 1.25mm Pitch FPC/FFC Connector FH3 Series features a contact pitch of 1.25mm, high contact reliability for high voltage, and offers 16 different contact numbers.

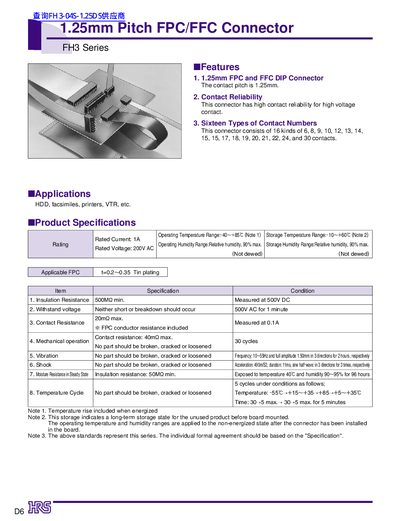

This product leaflet describes the HRS FH3 Series 1.25mm pitch FPC/FFC connectors, designed for use in HDDs, fax machines, printers, and VTRs. It offers 16 contact configurations ranging from 4 to 30 contacts, with a rated current of 1A and rated voltage of 200V AC. The connectors are available in right-angle and straight types, with dimensions specified for each contact count. They are constructed with PBT insulators and phosphor bronze contacts with tin plating, and meet environmental and mechanical durability standards including vibration, shock, and temperature cycling tests.
The document includes detailed specifications such as insulation resistance, contact resistance, and mechanical operation cycles, along with PCB footprint dimensions and product part numbers for each configuration.
| Contact Pitch | 1.25mm |
|---|---|
| Rated Current | 1A |
| Rated Voltage | 200V AC |
| Operating Temperature Range | -40~+85°C |
| Storage Temperature Range | -10~+60°C |
| Contact Resistance | 40mΩ max |
| Insulation Resistance | 50MQ min |
| Contact Material | Phosphor bronze with tin plating |
| Insulator Material | PBT Black UL94V-0 |
The contact pitch is 1.25mm.
The connector has 16 types of contact numbers: 4, 6, 8, 9, 10, 12, 13, 14, 15, 17, 18, 19, 20, 21, 22, 24, and 30 contacts.
Rated voltage is 200V AC and rated current is 1A.
The insulator is made of PBT Black UL94V-0, and contacts are phosphor bronze with tin plating.
