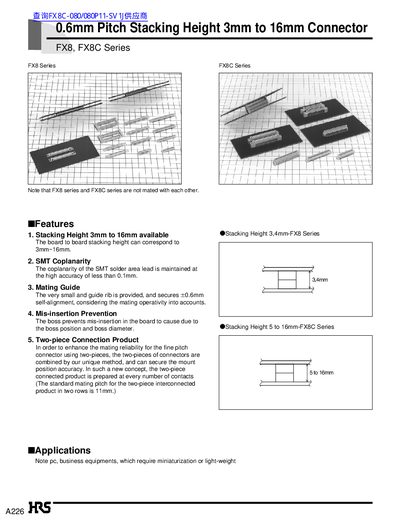

The document describes the features and characteristics of the FX8 and FX8C series connectors, with a stacking height of 3mm to 16mm, for the A226 0.6mm pitch.
This document provides technical details for the HRS FX8C Series of fine-pitch connectors designed for board-to-board applications with a 0.6mm pitch. The series features a stacking height ranging from 3mm to 16mm and includes two-piece connection products to enhance mating reliability.
Key specifications include a current rating of 0.4A, an operating temperature range of -55°C to +85°C, and a voltage rating of 100V AC. The connectors utilize phosphor bronze contacts with gold plating and are available in header and receptacle types.
| Pitch | 0.6mm |
|---|---|
| Stacking Height Range | 3mm to 16mm |
| Current Rating | 0.4A |
| Operating Temperature Range | -55C to +85C |
| Voltage Rating | 100V AC |
| Insulation Resistance | 100M ohms min. |
| Contact Resistance | 80m ohms max. |
No, the FX8 series and FX8C series are not mated with each other.
The coplanarity is maintained at an accuracy of less than 0.1mm.
The insulator is made of PBS with a light brown color.
