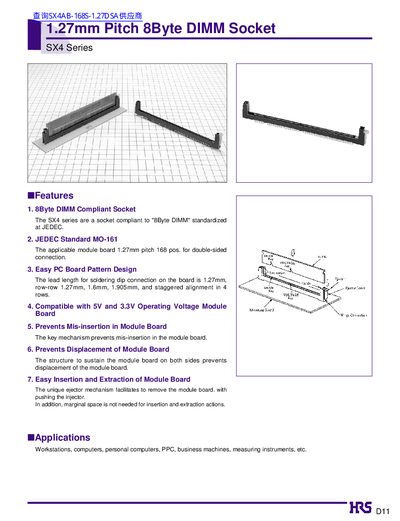

The SX4 series 8-bit DIMM socket is a socket compliant to the JEDEC-standardized 8-bit DIMM. It has the following features: easy PC board design, prevention of mis-insertion, prevention of module board displacement, and easy insertion and removal of the module board.
The document describes the HRS SX4 Series, a 1.27mm pitch 168-contact female socket designed for 8Byte DIMM modules. It complies with the JEDEC standard MO-161 and supports both 5V and 3.3V operating voltages. Key features include an ejector mechanism for easy board insertion and extraction, a keying system to prevent mis-insertion, and a structure that prevents module board displacement.
| Pitch | 1.27mm |
|---|---|
| Contact Count | 168 pos. |
| Operating Temperature Range | -55°C to +85°C |
| Voltage Rating | 100V AC |
| Current Rating | 0.5A |
| Insulation Resistance | 1000M ohms min. |
The contact pitch is 1.27mm.
Yes, it is compatible with 5V and 3.3V Operating Voltage Module Board.
It complies with JEDEC Standard MO-161.
