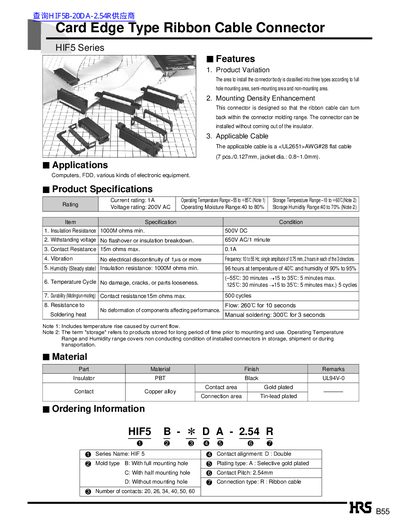

The B55 Card Edge Type Ribbon Cable Connector HIF5 Series is a connector with various features, including installation area classification, increased mounting density, applicable cable, durability, etc.
The HRS HIF5 Series is a card edge type ribbon cable connector designed for computers, FDDs, and various electronic equipment. It features mounting density enhancement that allows the ribbon cable to turn back within the molding range without removing it from the insulator.
The series offers three body types based on the installation area: full hole mounting (HIF5B), half mounting hole (HIF5C), and non-mounting hole (HIF5D). It supports contact pitches of 2.54mm with plating options including selective gold and tin-lead.
| Applicable Cable | |
|---|---|
| Current rating | 1A |
| Operating Temperature Range | -55 to +85°C |
| Voltage rating | 200V AC |
| Insulation Resistance | 1000M ohms min. |
| Contact Resistance | 15m ohms max. |
The installation area is classified into full hole mounting, semi-mounting, and non-mounting areas.
The insulator is made of PBT (Polybutylene terephthalate) in black color.
The contact area is gold plated and the connection area is tin-lead plated.
