PCN series is a connector of MOLEX, which has a variety of types such as straight through hole, stacking hole, bending hole, press fit, etc., to meet different application needs

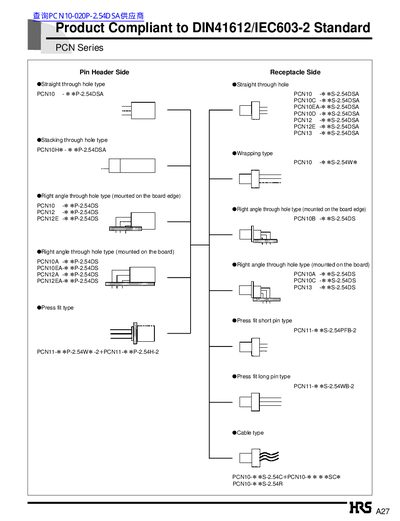

The Hirose Electric PCN Series consists of connectors compliant with the DIN Standard (IEC603-2/DIN41612). The series includes Pin Header types (PCN10, PCN11) and Receptacle/Socket types (PCN10, PCN12, PCN13), available in various configurations such as straight through-hole, right angle through-hole, wrapping type, and stacking heights. These connectors are designed for applications including control equipment, exchanges, and measuring instruments.
| Compliance Standard | IEC603-2/DIN41612 standard. |
|---|---|
| Operating Temperature Range | -55 to +85°C |
| Storage Temperature Range | -10 to +60°C |
| Voltage rating | 300V AC |
| Insulation Resistance | 10^9 M ohms |
| Withstanding Voltage | 1000V AC (insulation displacement) |
| Contact Resistance | 20m ohms max. |
The connectors are compliant with DIN Standard and IEC603-2/DIN41612 standard.
The operating temperature range is from -55 to +85 degrees Celsius.
