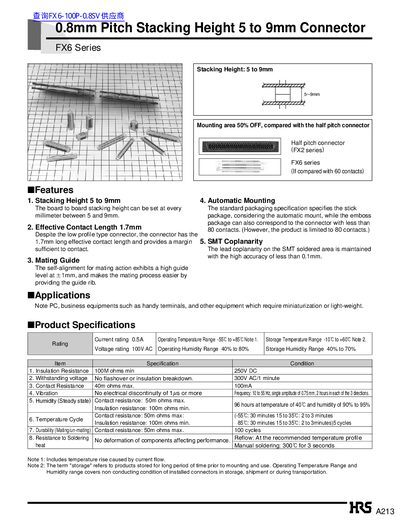

The document describes the features and characteristics of A213 0.8mm Pitch Stacking Height 5 to 9mm Connector FX6 Series I, including adjustable stacking height, long effective contact length, and automatic alignment.
This document provides technical specifications, mechanical dimensions, and ordering information for the HRS FX6 Series connector. The product is designed as a low-profile board-to-board stackable connector with a contact pitch of 0.8mm and a stacking height adjustable between 5mm and 9mm.
| Contact Pitch | 0.8mm |
|---|---|
| Stacking Height Range | 5 to 9mm |
| Effective Contact Length | 1.7mm |
| Current Rating | 0.54A |
| Voltage Rating | 100V AC |
| Operating Temperature Range | -55C to +85C |
| Insulation Resistance | 100M ohms min |
The contact pitch for the FX6 series connector is 0.8mm.
The effective contact length is set to 1.7mm, and users should set the clearance within 1.0mm between the header and receptacle.
