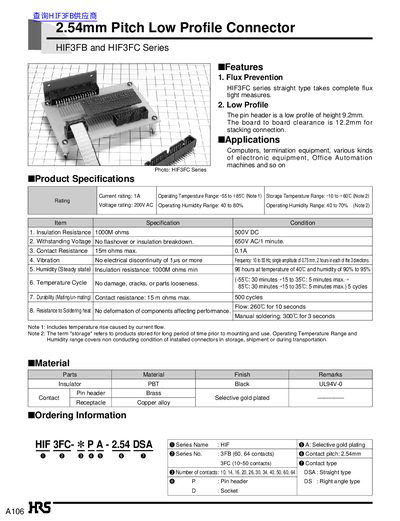

The HIF3FB and HIF3FC series 2.54mm pitch low profile connectors have flux prevention and low profile features, and are mainly used in computers, termination equipment, various types of electronic equipment, office automation equipment, etc.
The HIF3FB and HIF3FC series are low-profile 2.54mm pitch connectors designed for computers, electronic equipment, and office automation machines. They feature selective gold-plated contacts, a height of 9.2mm, and support current ratings up to 1A. Available in straight and right-angle types, they offer various contact counts (10 to 64) and include polarizing keys for secure mating. The connectors are rated for operating temperatures from -55°C to +85°C and are tested for durability, vibration, humidity, and soldering heat resistance.
| Current Rating | 1A |
|---|---|
| Operating Temperature Range | -55 to +85°C |
| Storage Temperature Range | -10 to +60°C |
| Voltage Rating | 200V AC |
| Insulation Resistance | 1000M ohms |
| Withstanding Voltage | 650V AC |
| Contact Resistance | 15m ohms max |
| Contact Pitch | 2.54mm |
| Number of Contacts | 10, 14, 16, 20, 26, 30, 34, 40, 50, 60, 64 |
| Insulator Material | PBT |
| Contact Material | Selective gold plated |
| Pin Header Material | Brass |
The operating temperature range is -55°C to +85°C.
The current rating is 1A.
The contact pitch is 2.54mm.
