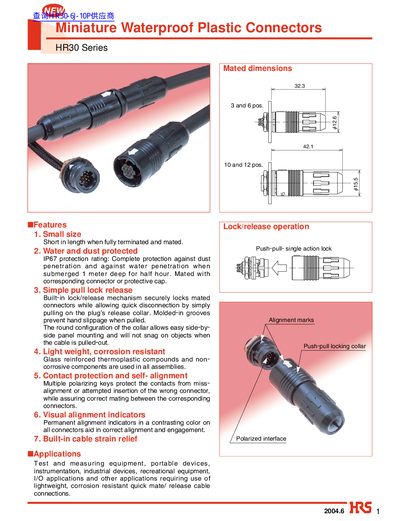

HR30 series miniature waterproof plastic connectors have the characteristics of small size, dust and water protection, corrosion resistance, self-locking and self-release. They are widely used in test equipment, portable devices, instrumentation, industrial devices, recreational equipment and other fields.
The HR30 Series connectors are designed for lightweight, corrosion-resistant, quick-mate connections in demanding environments. They feature IP67 water and dust protection, a push-pull locking mechanism for secure mating, and visual alignment indicators. Available in 3, 6, 10, and 12 positions, they support solder, crimp, and through-hole contact types. Materials include glass-reinforced thermoplastics and gold-plated contacts for durability and conductivity.
Applications include test equipment, portable devices, industrial machinery, and recreational gear. The connectors are rated for 100V AC/140V DC and 30V AC/42V DC, with temperature ranges from -25°C to +85°C. They pass vibration, durability, and humidity tests, ensuring long-term reliability in harsh conditions.
| Water and Dust Protection | IP67 rating |
|---|---|
| Operation Temperature Range | -25°C to +85°C |
| Voltage Rating | 100V AC, 140V DC (3,6 pos.) |
| Insulation Resistance | 1000M ohms min. 100 V DC |
| Withstanding Voltage | 300 V AC / one minute |
| Material | PPS, PBT, Polyacetal, Silicone rubber, Brass, Phosphor bronze, Stainless steel |
IP67 rating: complete protection against dust and water penetration when submerged 1 meter deep for half an hour.
From -25°C to +85°C.
Glass-reinforced thermoplastics, gold-plated brass and phosphor bronze contacts, and stainless steel springs.
Solder, crimp, and through-hole types are available for plugs, receptacles, and jacks.
