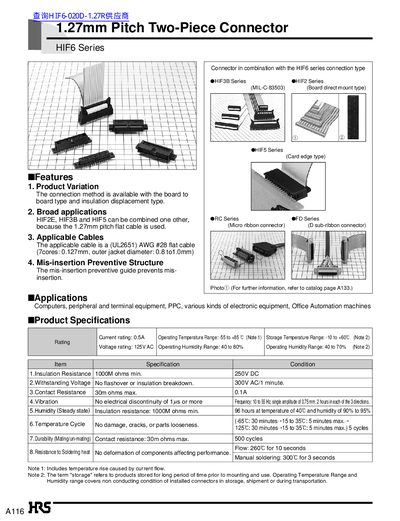

The A116 1.27mm Pitch Two-Piece Connector HIF6 Series offers various features and characteristics, including multiple connection methods, broad applications, compatibility with specific cables, and a mis-insertion preventive structure.
This document describes the HIF6 Series 1.27mm pitch two-piece connectors, designed for board-to-board and insulation displacement connections. It details product variations, applications in computers and office equipment, and electrical specifications including current rating, voltage, and temperature ranges. Ordering information and dimensional data for various contact counts are provided.
The connectors are compatible with UL2651 AWG #28 flat cables and feature mis-insertion prevention. Material specifications and mechanical dimensions are listed for different configurations including right-angle and straight types with or without mounting holes.
| Current Rating | 0.54 |
|---|---|
| Operating Temperature Range | -55 to +85 C |
| Storage Temperature Range | -10 to +60C |
| Rating Voltage | 125V AC |
| Insulation Resistance | 1000M ohms min. 250V DC |
| Withstanding Voltage | 300V AC/1 minute |
| Contact Resistance | 30m ohms max. 0.1A |
| Contact Pitch | 1.27mm |
The operating temperature range is -55 to +85°C.
The compatible cable is a UL2651 AWG #28 flat cable (7cores: 0.127mm, outer jacket diameter: 0.8 to 1.0mm).
The contact pitch is 1.27mm.
The maximum contact resistance is 30m ohms at 0.1A.
