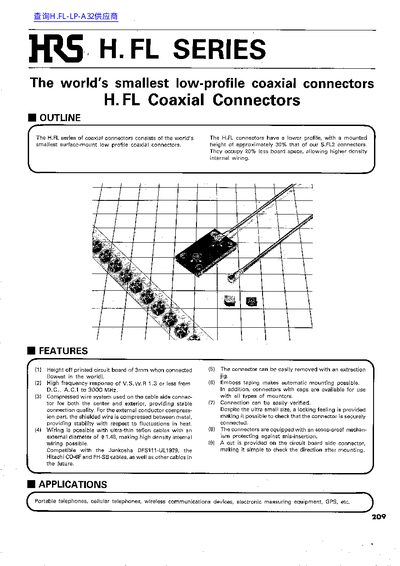

The H.FL series are the world’s smallest low-profile coaxial connectors, with a mounted height of 3mm and 20% less board space than S.FL2 connectors. They support high-frequency response up to 3000 MHz and are compatible with various cables including Junkosha DFS111-UL1979 and Hitachi CO-6F. Connectors feature compressed wire systems for stable connections, emboss taping for automatic mounting, and a scoop-proof mechanism to prevent mis-insertion. Available in plugs, receptacles, and with caps for versatile mounting options.
| Characteristic Impedance | 50Ω |
|---|---|
| Insulation Resistance | 500MΩ or greater at DC 250V |
| Contact Resistance | 20mΩ (center), 10mΩ (exterior) at DC 10mA |
| Dielectric Strength | AC 300V (r.m.s), 1 minute |
| Voltage Standing Wave Ratio | 1.3 or less, DC to 3000MHz |
The mounted height is approximately 3mm, the lowest in the world.
Compatible with Junkosha DFS111-UL1979, Hitachi CO-6F and FH-SB cables, and other cables in the future.
The contact service life is 50 times.
