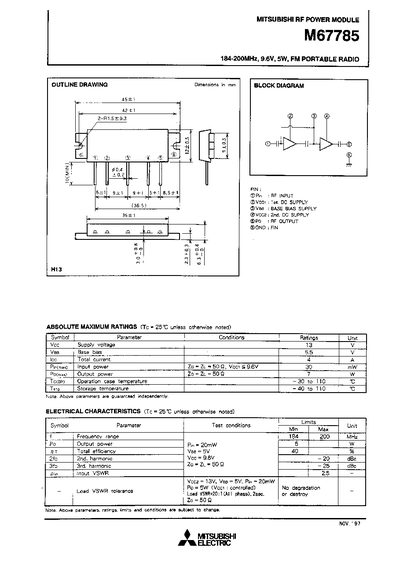

This document is a technical datasheet for the Mitsubishi Electric M67785, an RF power module intended for use in FM portable radio applications. The device operates within a frequency range of 184 to 200 MHz and provides up to 5 W of output power.
| Frequency Range | 184 to 200 MHz |
|---|---|
| Output Power | 5 W |
| Supply Voltage (Vcc1) | 9.6 V |
| Total Current | 4 A |
| Operation Case Temperature | -30 to 110 C |
The module operates within a frequency range from 184 to 200 MHz.
The maximum output power is rated at 7 W when using a 50-ohm load.
The supply voltage must not exceed 13 V, and the base bias must not exceed 5.5 V.
