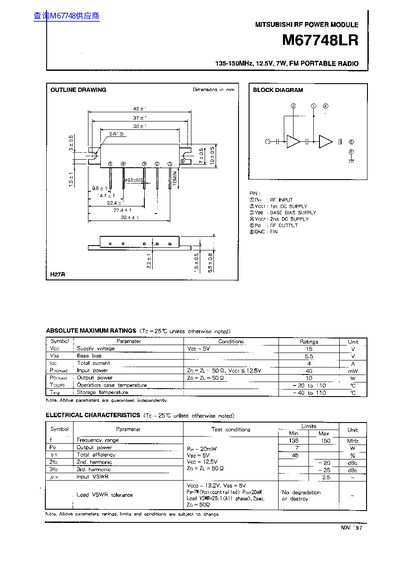

This document is a datasheet for the Mitsubishi M67748LR RF Power Module. It provides outline drawings and block diagrams relevant to FM portable radio systems operating in the 135-150 MHz frequency range.
The text details absolute maximum ratings, including supply voltage limits of 15V and base bias of 55V, with a total current rating of 4A. It also lists electrical characteristics such as an output power of up to 7W at 20mW input and a total efficiency of 45%.
| Frequency Range | 135 to 150 MHz |
|---|---|
| Output Power (Po) | 7 W |
| Total Efficiency | 45 % |
| Supply Voltage (Veo) | 15 V |
| Base Bias Voltage | 55 V |
| Total Current (Ioc) | 4 A |
The module operates within a frequency range from 135 to 150 MHz.
