M38000E1-XXXFS is an 8-bit single-chip microcomputer produced by Mitsubishi Electric Corporation

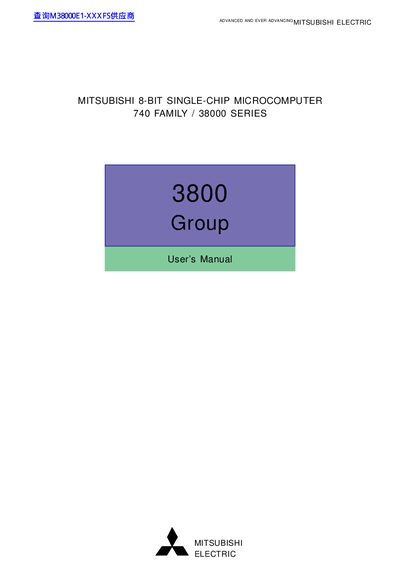

This user's manual provides comprehensive information on Mitsubishi Electric's CMOS 8-bit single-chip microcomputers, specifically the 3800 Group (including models like 3800, 3802, 3806, and 3807) and the 740 Family. It covers hardware organization, peripheral functions such as timers, serial I/O, A-D converters, and D-A converters, as well as CPU operation modes.
The document is structured into three main chapters: Hardware (describing features and block diagrams), Application (providing usage examples for registers and peripherals like ports and interrupts), and Appendix (listing electrical characteristics, timing requirements, and register lists). It serves as a reference for hardware design and software development using these microcomputers.
| Architecture | CMOS 8-bit microcomputer |
|---|---|
| Clock Synchronous X1 | Available in all groups |
The manual covers the 3800 Group, which includes the 3800, 3802, 3806, and 3807 groups.
Software details are not in this manual; refer to the 'SERIES MELPS 740
Yes, an extended operating temperature version is available for certain groups.
