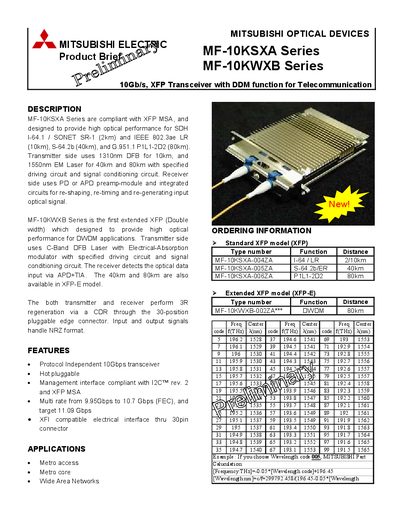

The MF-10KSXA Series is a 10Gbps XFP transceiver compliant with XFP MSA standard, designed for telecommunications applications. It provides high optical performance for SDH I-64.1 / SONET SR-1 (2km) and IEEE 802.3ae LR (10km), S-64.2b (40km) and G.951.1 P1L1-2D2 (80km) applications. The transmitter side uses 1310nm DFB laser and the receiver side uses PD or APD pre-amp module and integrated circuits for re-shaping, re-timing and re-generating input optical signal.
The MF-10KSXA Series are compliant with XFP MSA, designed to provide high optical performance for SDH/SONET SR-1 (2km), IEEE 802.3ae LR (10km), S-64.2b (40km), and G.951.1 P1L1-2D2 (80km). The transmitter uses a 1310nm DFB for 10km distances, while the receiver utilizes PD or APD preamp-modules with integrated circuits for signal regeneration.
The MF-10KWXB Series is an extended XFP (Double width) model designed specifically for DWDM applications. It features a C-Band DFB Laser with Electrical-Absorption Modulator and performs 3R Type regeneration via a CDR through the 30-position pluggable edge connector, handling NRZ format input and output signals.
The series supports 2km, 10km, 40km, and 80km transmission distances.
The transmitter side uses a 1310nm DFB laser for 10km applications.
The device supports a multi-rate range from 9.95Gbps to 10.7 Gbps.
