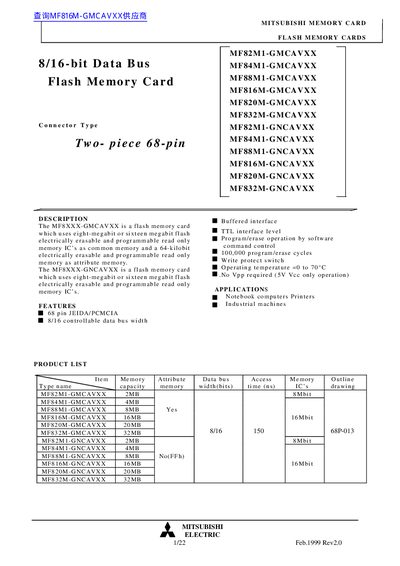

This is a 8/16-bit data bus flash memory card produced by Mitsubishi Electric. It uses 8-megabit or 16-megabit flash electrically erasable and programmable read only memory ICs as common memory and a 64-kilobit electrically erasable and programmable read only memory as attribute memory.
This document describes the specifications and operation of the Mitsubishi Electric MF8XXX-GMCAVXX and MF8XXX-GNCAVXX flash memory cards. These devices utilize eight-megabit or sixteen-megabit flash electrically erasable and programmable read-only memory ICs as common memory, with some models including a 64-kilobit EEPROM for attribute memory.
The datasheet details the functional description of the card's operating modes determined by control signals such as REG#, CE1#, CE2#, OE#, and WE#. It provides pin assignments for the two-piece 68-pin connector, block diagrams, and comprehensive function tables for both common and attribute memory operations in various data bus widths.
| Data Bus Width | 8/16 controllable data bus width |
|---|---|
| Connector Type | Two-piece 68-pin |
| Interface Level | TTL interface level |
| Program/Erase Cycles | 100,000 program/erase cycles |
| Operating Temperature | -0 to 70°C |
| Power Supply Requirement | No Vpp required (5V Vee only operation) |
No, it does not require Vpp and operates with 5V Vee only.
The cards operate within a temperature range of -0 to 70°C.
The card supports up to 100,000 program/erase cycles.
No, the card operates with 5V Vee only and does not require Vpp.
