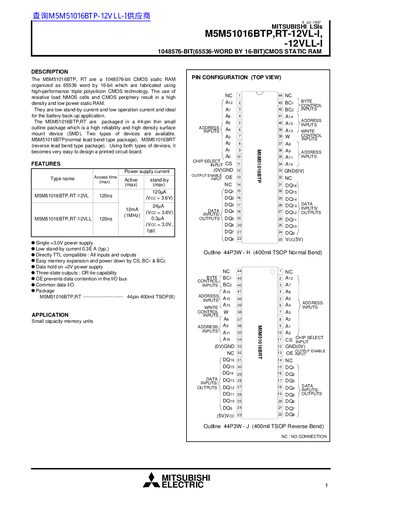

M5M51016BTP,RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon CMOS technology
This document describes the M5M51016BTP and M5M51016BRT, which are 1048576-bit CMOS static RAMs organized as 65536 words by 16 bits. Fabricated using high-performance triple polysilicon CMOS technology with resistive load NMOS cells, these devices offer high density and low power consumption, making them ideal for battery back-up applications.
| Capacity | 1048576-bit (65536-word by 16-bit) |
|---|---|
| Technology | CMOS Static RAM |
| Package Type | 44-pin TSOP (Thin Small Outline Package) |
| Operating Temperature | -40 ~ 85 °C |
| Supply Voltage (Typ) | +3.0V |
| Access Time (12VL-I) | 120ns |
| Stand-by Current (Typ) | 0.3µA |
The device is organized as 65536 words by 16-bit.
Yes, all inputs and outputs are directly TTL compatible.
Yes, it is ideal for the battery back-up application due to low stand-by current.
