This document provides an overview of the MITSUBISHI Nch POWER MOSFET FS100KMJ-03. The product is suitable for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters. It features a range of electrical characteristics and parameters.

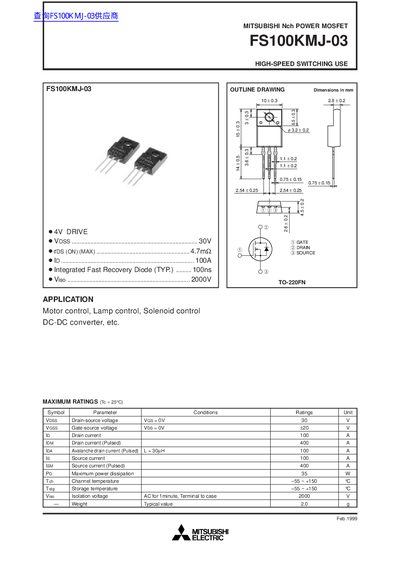

This document is a technical datasheet for the Mitsubishi Electric FS100KMJ-03 Nch Power MOSFET. It specifies that the device is designed for high-speed switching applications such as motor control, lamp control, solenoid control, and DC-DC converters.
The datasheet provides comprehensive electrical characteristics including maximum ratings like a drain-source voltage of 30V and a pulsed drain current of 400A. It also includes typical performance curves for parameters such as on-state resistance, switching time, capacitance, and thermal impedance.
| Drain-source voltage (VDS) | 30 V |
|---|---|
| Gate-source voltage (VGS) | +20 V |
| Drain current (ID) | 100 A |
| Pulsed Drain current (IDM) | 400 A |
| Maximum power dissipation (Pd) | 35 W |
| Channel temperature range | -55 ~ +150 °C |
| Thermal resistance (Channel to case) | 3.57 °C/W |
The device is suitable for motor control, lamp control, solenoid control, and DC-DC converters.
The maximum pulsed drain current (IDM) rating is 400 A.
