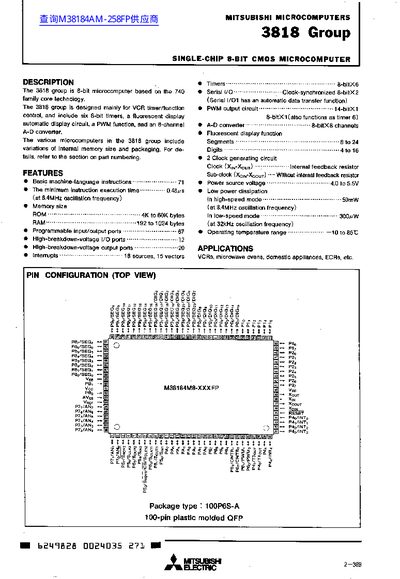

The Mitsubishi 3818 Group is an 8-bit microcomputer based on 740 family core technology. It includes six 8-bit timers, a fluorescent display automatic circuit, PWM output functions, and an 8-channel A-D converter. The group is designed primarily for VCR timer/function control and domestic appliance applications.
| Memory (ROM) | 4K to 60K bytes |
|---|---|
| Power source voltage | 4.0 to 5.5V |
| Timers | six 8-bit timers |
| A-D converter channels | 8-channel |
The microcomputers in this group are designed mainly for VCR timer/function control and domestic appliances.
The M38184M8-XXXFP uses a 100-pin plastic molded QFP package.
