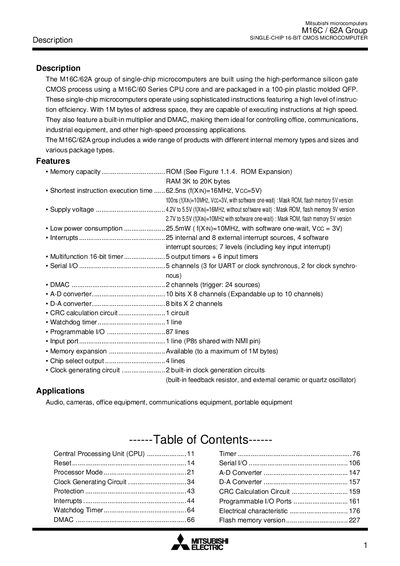

The M16C/62A group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The M16C/62A group includes a wide range of products with different internal memory types and sizes and various package types.
The document provides a comprehensive overview of the M16C/62A Group, which consists of high-performance silicon gate CMOS microcomputers. These devices feature a built-in multiplier, DMAC, and various peripheral functions such as A-D/D-A converters, CRC calculation circuits, and watchdog timers.
| Shortest instruction execution time (16MHz, 5V) | 62.5ns |
|---|---|
| Shortest instruction execution time (10MHz, 3V) | 100ns |
| RAM capacity range | 3K to 20K bytes |
| Supply voltage (16MHz) | 4.2V to 5.5V |
| Supply voltage (10MHz) | 2.7V to 5.5V |
| Power consumption (10MHz, 3V) | 25.5mW |
| Number of basic instructions | 91 instructions |
| A-D converter resolution and channels | 10 bits x (8 + 2) channels |
| D-A converter resolution and channels | 8 bits x 2 |
| Package type | 100-pin plastic mold QFP |
The shortest instruction execution time is 62.5ns at 16MHz and 5V, or 100ns at 10MHz and 3V with a software wait.
The M16C/62A group supports mask ROM, external ROM, and flash memory versions.
