The V300C2C50A is a DC-DC converter module from Vicor Corporation. It uses second-generation power processing, control, and packaging technologies to provide the performance, flexibility, and cost-effectiveness expected of a mature power component. This product has a wide input voltage range, high input surge withstand capability, programmable output, high accuracy regulation, high efficiency, high power density, low height, and low noise.

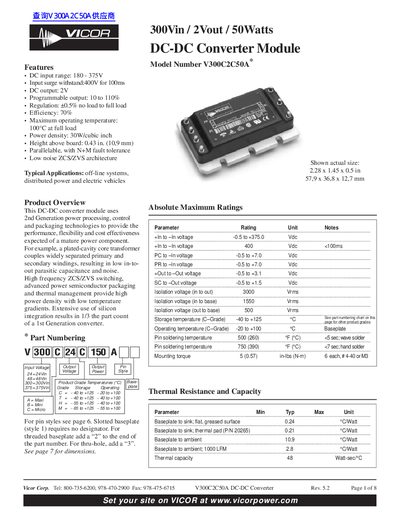

This document is a technical datasheet for the Vicor V300C2C50A DC-DC Converter Module. It details the electrical, mechanical, and control specifications of the device, which utilizes 2nd Generation power processing technology to achieve high efficiency and low noise.
The module features a wide input voltage range from 180V to 375V and provides a nominal output voltage of 2V with programmability between 10% and 110%. Key specifications include an operating temperature range of -20°C to +100°C, maximum power density of 30W/cubic inch, and parallel operation capability for fault tolerance.
| Input voltage range | 180 to 375 Vdc |
|---|---|
| Output voltage (nominal) | 2.00 V |
| Maximum output power | 50 Watts |
| Efficiency (typical) | 70% |
| Operating temperature range | -20 to +100 °C |
| Isolation voltage (in to out) | 3000 Vrms |
| Weight | 2.1 to 2.3 ounces |
The output voltage can be programmed from 10% to 110% of the nominal value.
The module contains watchdog circuitry that monitors parameters; if a fault like overtemperature occurs, the module shuts down and the PC signal goes low.
