This document introduces the VI-261-EU-BM converter, which can output 12V DC at 200W on a 300V input, with high power density and integral finned heatsinks.

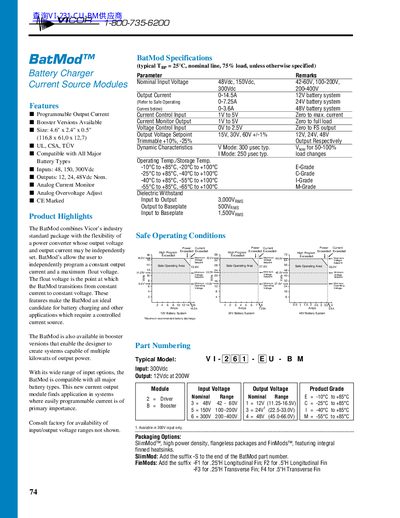

This document is a product data sheet for the Vicor BatMod V I-261-EU-BM, a battery charger current source module. It includes specifications, features, packaging options, and application details for the module, which is designed for use in battery charging systems and other applications requiring a controlled current source.
The datasheet provides typical model parameters such as input/output voltages, output current ranges, and dynamic characteristics. It also lists available packaging options like SlimMod and FinMods, along with pinout diagrams and mechanical dimensions.
| Nominal Input Voltage (Typical) | 48Vdc, 150Vdc, 42-60V, 100-200V, 300Vdc |
|---|---|
| Output Current (12V system) | 0-14.5A |
| Operating Temperature Range | -10°C to +85°C (E-Grade) |
| Dielectric Withstand Input to Output | 3,000V RMS |
| Module Size | 4.6" x 2.4" x 0.5" |
The module is available in SlimMod™, high power density flangeless packages, and FinMods™ featuring integral finned heatsinks.
Yes, with its wide range of input options, the BatMod is compatible with all major battery types.
The module supports 15V, 30V, and 60V setpoints for 12V, 24V, and 48V systems respectively.
