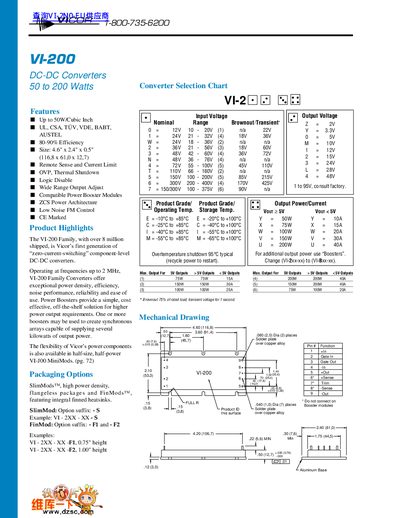

Vicor VI-200 DC-DC Converter Datasheet

VI-200 DC-DC Converters 50 to 200 Watts Product Highlights: Zero-current-switching component-level DC-DC converters, exceptional power density, efficiency, noise performance, reliability and ease of use.

Brand: VICOR
Category: DC/DC Converter
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 152 KB
Published: 05 June, 2012
Updated: 01 October, 2023
Model: VI-200
MD5 checksum: ACA8DC19D716E9518D029CBEA7D6FE2C
PDF: Vicor VI-200 DC-DC Converter Datasheet PDF

About this manual

The Vicor VI-200 Family is a first-generation line of component-level DC-DC converters featuring zero-current-switching (ZCS) architecture. Operating at frequencies up to 2 MHz, these devices offer high power density and efficiency ranging from 80% to 90%. The family includes various packaging options such as SlimMods and FinMods.

What's inside

Features
Product Highlights
Packaging Options
Converter Selection Chart
Mechanical Drawing
Input Characteristics
Output Characteristics
Control Pin Characteristics

Specifications

Power Range	50 to 200 Watts
Efficiency	80-90%
Operating Frequency	up to 2 MHz
Weight	6.0 Ounces (170 Grams)
Thermal Shutdown	95°C typical

Frequently asked questions

What is the power density of the VI-200 family?

The converters offer up to 50 Watts per cubic inch.

What is the physical size of the VI-200 converter?

The unit measures 4.6 inches by 2.4 inches by 0.5 inches.

What is the typical efficiency of the VI-200 converter?

The device operates with an efficiency between 80% and 90%.
