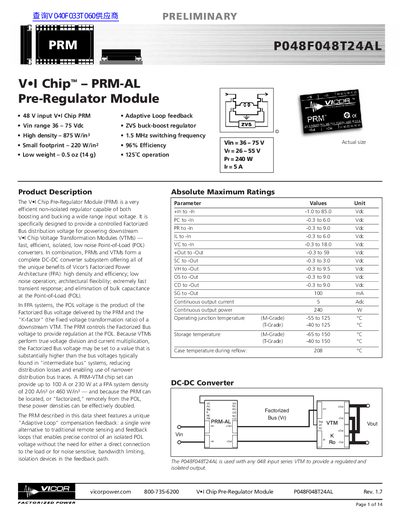

P048F048T24AL V•I Chip Pre-Regulator Module is a very efficient non-isolated regulator capable of both boosting and bucking a wide range input voltage.
The Vel Chip Pre-Regulator Module (PRM) is a non-isolated regulator designed to provide a controlled Factorized Bus voltage for powering downstream Voltage Transformation Modules (VTMs). It features an Adaptive Loop feedback mechanism that allows precise control of isolated Point-of-Load voltages using a single wire, eliminating the need for traditional remote sensing or isolation devices in the feedback path. The module supports both bucking and boosting across a wide input voltage range.
| Input voltage range | 36 - 75 Vdc |
|---|---|
| Output power | 240 W |
| Efficiency (Full load) | 96% |
| Switching frequency | 1.5 MHz |
| Operating junction temperature (M-Grade) | -55 to 125 °C |
| Weight | 0.5 oz / 14 g |
It enables precise control of an isolated POL voltage without needing a direct connection to the load or noise-sensitive isolation devices in the feedback path.
The module supports a continuous output current of 5 A.
