This document provides information about the parameters and features of the V300B15C250B DC-DC Converter from Vicor Corp., including input voltage range, output voltage, programmable output, regulation performance, and efficiency.

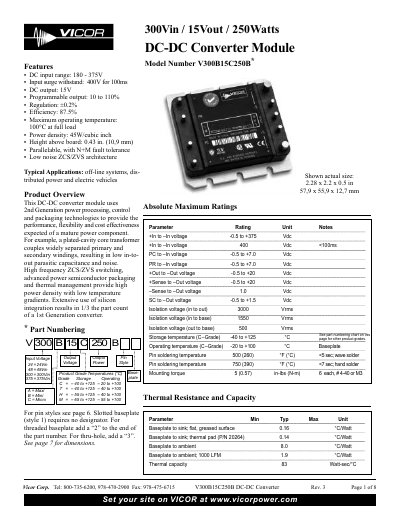

This document is a technical datasheet for the Vicor V300B15C250B, a high-power density DC-DC converter module. It utilizes 2nd Generation power processing technology with low noise ZCS/ZVS architecture to provide performance and flexibility in off-line systems and electric vehicles.
| Input Voltage Range | 180 to 375 Vdc |
|---|---|
| Output Voltage | 15V (Nominal) |
| Maximum Output Power | 250 Watts |
| Efficiency | 87.5% |
| Maximum Operating Temperature | 100°C at full load |
| Power Density | 45W/cubic inch |
The module can withstand an input surge of 400V for up to 100ms.
Yes, the output is programmable from 10% to 110% of the nominal setting.
