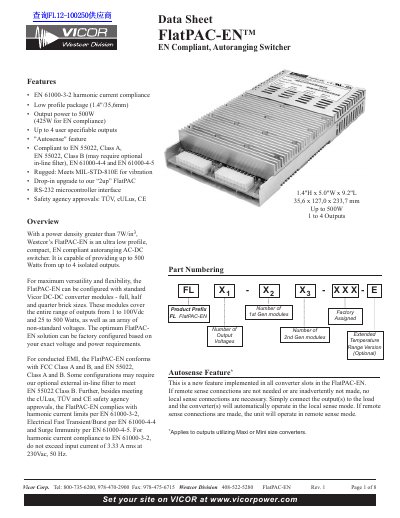

FlatPAC-EN is an ultra low profile, compact, EN compliant autoranging AC-DC switcher with a power density greater than 7W/in3. It is capable of providing up to 500 Watts from up to 4 isolated outputs. For maximum versatility and flexibility, the FlatPAC-EN can be configured with standard Vicor DC-DC converter modules - full, half and quarter brick sizes. These modules cover the entire range of outputs from 1 to 100Vdc and 25 to 500 Watts, as well as an array of non-standard voltages. The optimum FlatPAC- EN solution can be factory configured based on your exact voltage and power requirements. For conducted EMI, the FlatPAC-EN conforms with FCC Class A and B, and EN 55022, Class A and B. Some configurations may require our optional external in-line filter to meet EN 55022 Class B. Further, besides meeting the cULus, TÜV and CE safety approvals, FlatPAC-EN also has an IP54 rating for protection.
The Vicor FlatPAC-EN is an ultra-low profile, compact, EN compliant autoranging AC-DC switcher designed for high power density applications. It features a low profile package of 1.4 inches (35.6mm) and is capable of providing up to 500Watts from up to 4 isolated outputs. The unit supports standard Vicor DC-DC converter modules in full, half, and quarter brick sizes, covering output voltages from 1 to 100Vdc and powers from 25 to 500 Watts.
| Output Power | Up to 500W (425W for EN compliance) |
|---|---|
| Number of Outputs | Up to 4 |
| AC Input Voltage | 90-132/180-264 Vac |
| Frequency | 47-63 Hz |
| Dimensions | 9.2 x 5.0 x 1.4 in L x W x H |
| Weight | 3.4 lbs (1.5 kg) |
| Safety Approvals | cULus, TÜV, CE |
The maximum output power for EN 61000-3-2 compliance is 425W.
The unit accepts AC input voltages of 90-132 Vac or 180-264 Vac.
