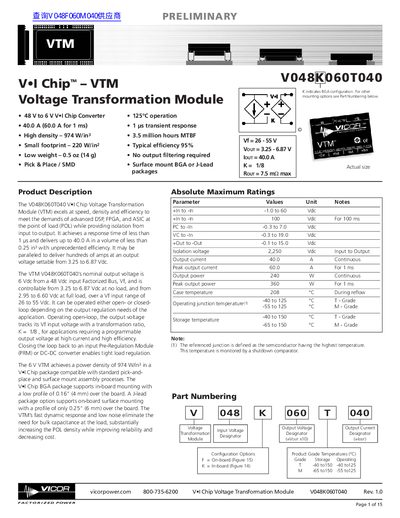

The V048K060T040 V•I Chip Voltage Transformation Module (VTM) is a high-performance, high-density, and high-efficiency power module that meets the demands of advanced DSP, FPGA, and ASIC at the point of load (POL) while providing isolation from input to output.
The Vicor V048K060T040 is a Voltage Transformation Module (VTM) designed for advanced DSP, FPGA, and ASIC applications. It converts an input voltage of 26 to 55 Vdc into a programmable output ranging from 3.25 to 6.87 Vdc at continuous currents up to 40.0 A. The module features a high power density of 974 W/in³ and operates efficiently with no external output filtering required.
| Input Voltage Range | 26 to 55 Vdc |
|---|---|
| Output Voltage (No Load) | 3.25 to 6.87 Vdc |
| Continuous Output Current | 40.0 A |
| Peak Output Current | 60.0 A for 1 ms |
| Power Density | 974 W/in³ |
The output voltage tracks the input with a transformation ratio of K=1/8.
No, the module eliminates the need for bulk capacitance at the load.
