This document provides information about the parameters and characteristics of VICOR's V48A12C500A DC-DC Converter, including input and output voltage range, isolation voltage, operating temperature, etc.

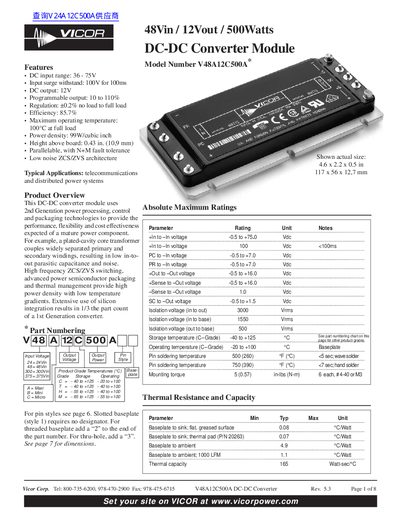

This document is a datasheet for the Vicor V48A12C500A DC-DC converter module. It utilizes 2nd Generation power processing, control, and packaging technologies to provide a 48V input to 12V output conversion at 500 Watts. The module features a low noise ZCS/ZVS architecture and is designed for applications such as telecommunications and distributed power systems.
| Input Voltage Range | 36 - 75 Vdc |
|---|---|
| Output Voltage | 12V |
| Output Power | 500 Watts |
| Efficiency | 85.7% |
| Maximum Operating Temperature | 100°C |
| Power Density | 99W/cubic inch |
| Height Above Board | 0.43 in. |
| Isolation Voltage (In to Out) | 3000 Vrms |
| Weight | 7.3 ounces (210 grams) |
The output voltage is programmable from 10% to 110% of the nominal setting.
It is typically used in telecommunications and distributed power systems.
Yes, the module is parallelable with N+M fault tolerance.
