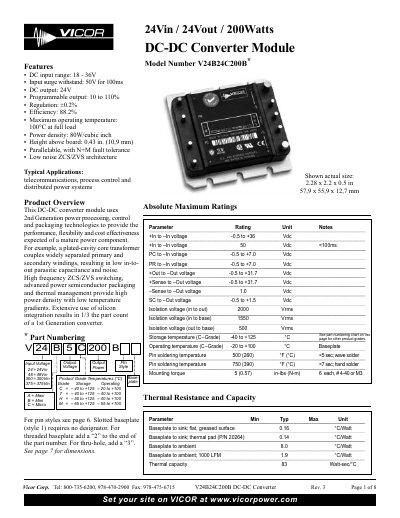

V24B24C200B DC-DC Converter is a DC-DC converter from Vicor company. It has a wide input voltage range of 18-36V, a 24V output voltage, and a maximum output power of 200W. It features a wide input voltage range, high output power, and high efficiency.
The Vicor V24B24C200B is a DC-DC converter module utilizing 2nd Generation power processing technology. It provides a 24V output with a power rating of 200 Watts and operates within an input voltage range of 18 to 36V. The module features a low noise ZCS/ZVS architecture and a power density of 80W per cubic inch.
| Input Voltage Range | 18 - 36V |
|---|---|
| Output Voltage | 24V |
| Output Power | 200 Watts |
| Efficiency | 88.2% |
| Maximum Operating Temperature | 100°C |
| Power Density | 80W/cubic inch |
| Height Above Board | 0.43 in. |
| Isolation Voltage (in to out) | 2000 Vrms |
The output voltage is programmable from 10% to 110% of the nominal value.
The module provides a regulation accuracy of 0.2%.
Yes, the modules are parallelable with N+M fault tolerance.
