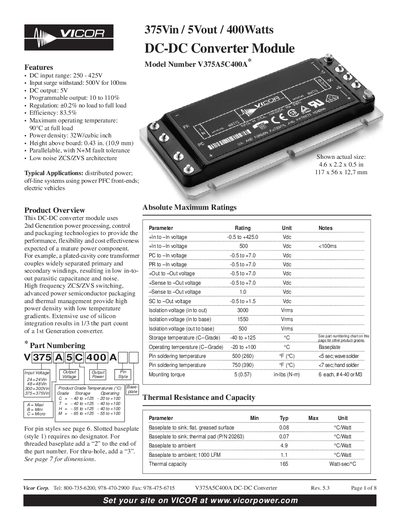

VICOR 375Vin 5Vout 400Watts DC-DC Converter Module Model Number V375A5C400A

V375A5C400A 400W DC-DC converter module, rated input voltage 375V, programmable output 5V, output power 400W

Brand: VICOR
Category: Power Management
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 194 KB
Published: 05 June, 2012
Updated: 30 September, 2023
Model: 375VIN
MD5 checksum: 97430B4B8ED4788CE0DB49A137EF6B14
PDF: VICOR 375Vin 5Vout 400Watts DC-DC Converter Module Model Number V375A5C400A PDF

About this manual

This document is a technical datasheet for the Vicor V375A5C400A DC-DC converter module. It utilizes 2nd Generation power processing technology to provide high power density with low noise ZCS/ZVS architecture. The module supports distributed power applications, off-line systems using PFC front-ends, and electric vehicles.

What's inside

Features
Product Overview
Absolute Maximum Ratings
Electrical Characteristics
Module Control Specifications
Control Functions - PC Pin
Output Voltage Programming

Specifications

Input voltage range	250 to 425 Vdc
Output voltage	5V
Maximum power	400 Watts
Efficiency	82.5% to 83.5%
Operating temperature (Grade C)	-40 to +100 °C

Frequently asked questions

What is the input surge withstand rating?

The module can withstand an input surge of 500V for less than 100ms.

Is the output voltage programmable?

Yes, the output is programmable from 10% to 110% of the nominal setting.

What are the typical applications for this module?

It is designed for distributed power, off-line systems using PFC front-ends, and electric vehicles.
