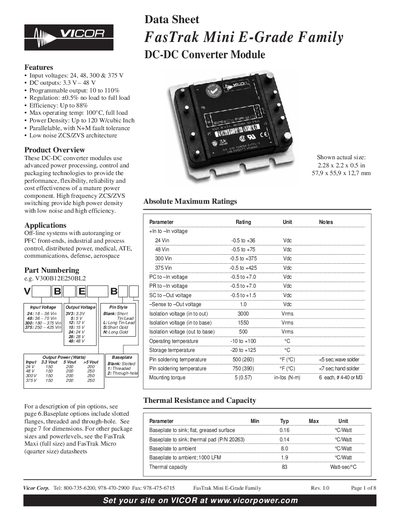

This datasheet introduces the features and characteristics of the Vicor FasTrak Mini E-Grade DC-DC Converter Module, including input voltage, output voltage, programmable output, output voltage regulation, efficiency, maximum operating temperature, power density, parallel characteristics, application scenarios, etc.
The Vicor FasTrak Mini E-Grade Family consists of DC-DC converter modules utilizing high-frequency ZCS/ZVS switching to achieve high power density and efficiency. These modules support input voltages of 24, 48, 300, and 375 V and provide programmable DC outputs ranging from 3.3 V to 48 V. The document outlines their applications in industrial, medical, and aerospace systems.
| Input voltages | 24, 48, 300 & 375 V |
|---|---|
| DC outputs | 3.3 V—48 V |
| Programmable output range | 10 to 110% |
| Regulation | +0.5% no load to full load |
| Max operating temperature | 100°C |
| Power Density | Up to 120 W/cubic Inch |
| Isolation voltage (in to out) | 3000 Vrms |
| Weight | 3.7 (104) 4(112) ounces (grams) |
The maximum operating temperature is 100°C at full load.
Yes, the output voltage is programmable from 10% to 110% of the nominal setting.
The available input voltage options are 24V, 48V, 300V, and 375V.
