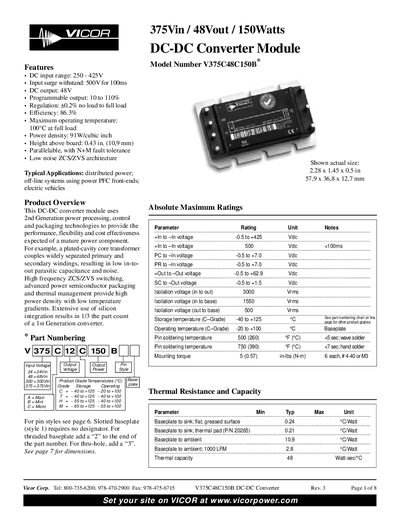

VICOR 375Vin 48Vout 150Watts DC-DC Converter Module Model Number V375C48C150B

This datasheet provides the technical specifications of the V375C48C150B DC-DC converter module, including input voltage range, output voltage, input current, output current, efficiency, maximum operating temperature, etc.

Brand: VICOR
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 142 KB
Published: 08 June, 2012
Updated: 30 September, 2023
Models: 375VIN, 150WATTS, 48VOUT
MD5 checksum: C64AA57890E628E1ED302294C38EF3CD
PDF: VICOR 375Vin 48Vout 150Watts DC-DC Converter Module Model Number V375C48C150B PDF

About this manual

This document is a technical datasheet for the Vicor V375C48C150B DC-DC Converter Module. It details the electrical, mechanical, and control specifications of the device, which utilizes 2nd Generation power processing technology to achieve high efficiency and low noise.

What's inside

Features
Product Overview
Part Numbering
Absolute Maximum Ratings
Electrical Characteristics
Control Functions - PC Pin
Control Functions - SC Pin

Specifications

Input Voltage Range	250 to 425 Vdc
Output Voltage	48V (Nominal)
Maximum Output Power	150 Watts
Efficiency	86.3%
Maximum Operating Temperature	100°C at full load
Isolation Voltage (Input to Output)	3000 Vrms

Frequently asked questions

What is the input surge withstand rating?

The module can withstand an input surge of 500V for less than 100ms.

What is the output voltage programming range?

The output voltage can be programmed from 10% to 110% of the nominal value.

What are the typical applications for this converter?

Typical applications include distributed power systems, off-line systems with PFC front-ends, and electric vehicles.
