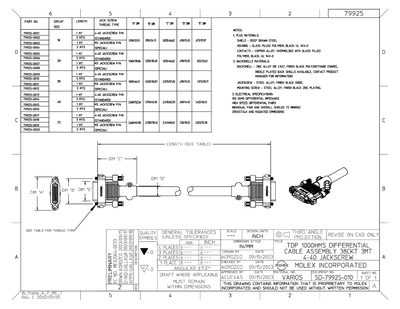

This datasheet provides a detailed list of Molex jack screw parts (e.g., 79925‑0001 to 79925‑0020) with their mechanical dimensions, thread types, and material specifications. It includes information on housing, contacts, backshells, and mounting screws, along with special notes on design and finish.
Electrical specifications such as a 400 Ω differential impedance are also documented, and the drawing is marked as proprietary to Molex with revision dates and approval signatures.
| Housing material | Glass-filled polymer, black, UL 94V-0 |
|---|---|
| Contact material | Copper alloy, overmolded with glass-filled |
| Differential impedance | 400 Ω |
The differential impedance is 400 Ω.
The housing is made of glass‑filled polymer, black, UL 94V-0.
The contacts are copper alloy, overmolded with glass‑filled material.
