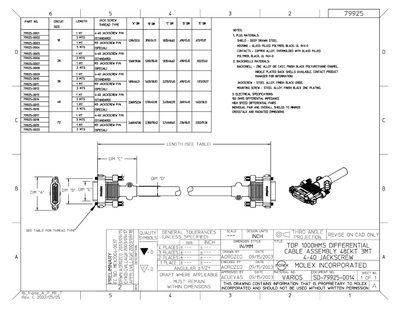

This data sheet provides a comprehensive list of part numbers (e.g., 79925-0001, 79925-0004) and the corresponding materials for jack screws, contacts, housings and backshells. Materials include glass‑filled polymer, copper alloy, zinc alloy and steel alloys with specific finishes such as UL 94V‑0 and black oxide.
Electrical specifications are also included, notably a 400 Ω differential impedance for the 3‑MTS standard jack screw. The document records revision information, drawing numbers and approval dates, indicating it is a proprietary Molex drawing intended for engineering use.
| Differential Impedance | 400 Ω |
|---|---|
| Contact Material | Copper alloy, overmolded with glass filled |
The jack screw has a differential impedance of 400 Ω.
The component is manufactured by Molex Incorporated.
