This document describes SPC TECHNOLOGY B data.

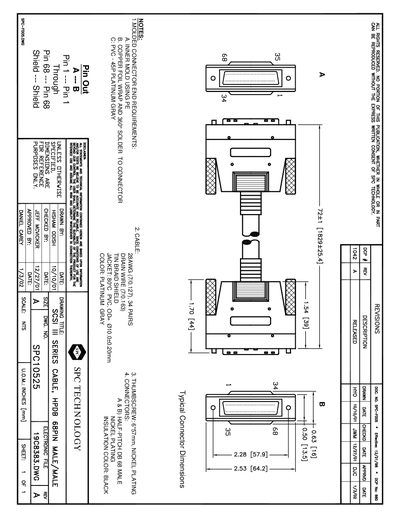

This data sheet provides detailed specifications for the SPC10525 connector, including mechanical dimensions, material finishes, and cable requirements. It lists the connector type, pin configuration, and finishing details such as nickel plating and insulation colors.
Revision information, drawing numbers, and approval dates are also included, indicating the document’s version control and compliance status.
| Connector type | Half‑pitch DB 68 male |
|---|---|
| Number of pairs | 34 pairs |
| Cable gauge | 28 AWG (7/0.127) |
| Jacket material | PVC, 80 °C rating |
| Jacket outer diameter | 10.0 ± 0.20 mm |
| Jacket color | Platinum gray |
| Plating | Nickel |
| Insulation color | Black |
| Pin count | 68 pins |
The cable uses 28 AWG (7/0.127) conductors.
The jacket is made of PVC rated for 80 °C.
It is a half‑pitch DB 68 male connector.
