This document is an instruction manual about SPC TECHNOLOGY DB25-50 connector
This data sheet provides detailed information for the SPC10506 cable assembly, including pin‑out color codes, molded connector end requirements, and cable construction details. It lists the connector options (DB25 male and Centronic 50‑pin male) and the materials used for insulation and jacket.

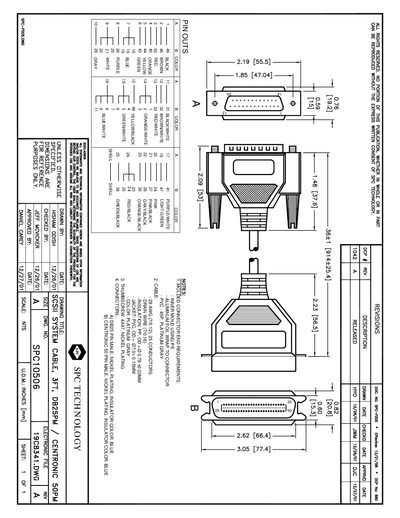

Revision and drawing information are included, showing the document number SPC‑FOOS, effective date 12/21/08, and drawing references. The sheet also contains manufacturing notes such as outer‑diameter tolerances and plating specifications.
| Cable gauge and conductors | 28 AWG (7/0.12), 25 conductors |
|---|---|
| Insulation outer diameter | 0.78 ± 0.03 mm |
| Jacket outer diameter | 7.0 ± 0.15 mm |
| DB25 connector type | Male, nickel plating, blue insulator |
| Centronic 50‑pin connector type | Male, nickel plating, blue insulator |
The cable is 28 AWG (7/0.12) with 25 conductors.
