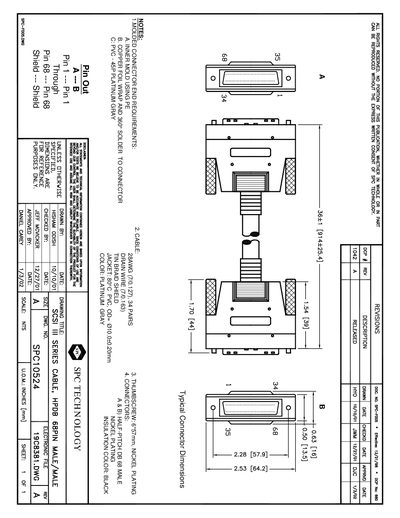

This document is a technical datasheet for the SPC Technology model SPC10524, identified as an SCSI III Series Cable. The drawing specifies it is a half-pitch DB68 Male/Male configuration with nickel plating.
The document provides detailed mechanical requirements for the molded connector end, including inner mold material (PE), copper foil wrapping, and PVC jacket specifications in platinum gray color. It also lists cable construction details such as 28 AWG conductors, drain wire, tin braid shield, and an 80°C PVC jacket.
| Product Type | SCSI III Series Cable, HPDB 68PIN MALE/MALE |
|---|---|
| Connector Type | Half-Pitch DB 68 Male |
| Conductor Gauge | 28 AWG (7/0.127) |
| Jacket Material and Temp Rating | 80°C PVC |
| Thumb Screw Size | 6*57mm |
