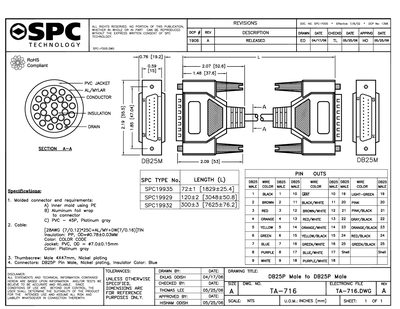

The SPC19929 is a DB25P male connector with nickel‑plated contacts and a PVC jacket. The datasheet provides detailed mechanical and electrical specifications, material descriptions, and color‑coding for each wire.
Key sections cover molded connector end requirements, cable construction, insulation material, jacket dimensions, thumbscrew details, and a full pin‑out table. All tolerances and compliance notes are included for design reference.
| Connector type | DB25P Pin Male |
|---|---|
| Jacket material | PVC, OD = 47.040.15 mm |
| Insulation material | PP, OD≈0.78 mm |
| Thumbscrew | Male 4 × 47 mm, nickel plated |
| Cable construction | 2BAWG (7/0.12)*25C+AL/MY+DW(7/0.16) |
It is a DB25P male connector with nickel‑plated pins.
The outer jacket is made of PVC.
The insulation material is polypropylene (PP).
The thumbscrew is a male 4 × 47 mm screw with nickel plating.
