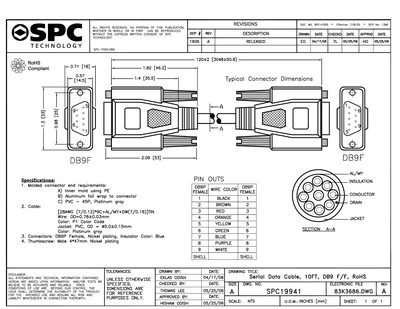

This data sheet describes the SPC19941 serial data cable, a 10‑ft cable with DB9P female connectors and detailed pin‑out and wiring information. It includes mechanical dimensions, material specifications, and color‑coded wire assignments.
Key specifications such as RoHS compliance, cable construction, connector type, and wire gauge are listed, allowing engineers to verify suitability for their applications.
| Cable length | 10 FT |
|---|---|
| Connector type | DB9P Female, Nickel plating |
| Wire gauge | 2B8AWG |
| Cable jacket material | PVC |
| Pin 1 wire color | Black |
| Pin 2 wire color | Brown |
The cable is 10 feet long.
It uses a DB9P female connector with nickel plating.
