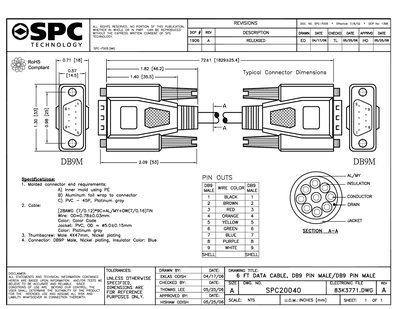

This data sheet describes the mechanical and electrical specifications of the SPC20040 DB9 male cable, including connector dimensions, wire and jacket details, and color coding. It also lists compliance information such as RoHS values.
Key sections cover pinouts, molded connector end requirements, cable construction, wire outer diameter, jacket material, thumbscrew size, and connector plating.
| Connector type | DB9P Male |
|---|---|
| Connector plating | Nickel |
| Wire outer diameter | 0.784 mm |
| Jacket material | PVC |
| Thumbscrew size | 4 × 47 mm |
| RoHS compliance value | 0.71 |
| Compliance factor | 1.82 |
The SPC20040 uses a DB9P male connector with nickel plating.
The wire outer diameter is specified as 0.784 mm.
The jacket material is PVC.
The thumbscrew is a male 4 × 47 mm part with nickel plating.
