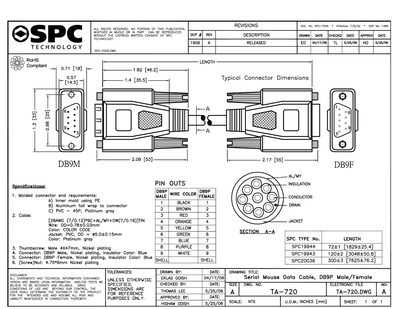

This datasheet describes the SPC TA-720 serial mouse data cable, including its DB9P male and female connectors, wiring colors, and mechanical dimensions. It is intended for engineers and technicians who need precise information for integration or repair.
Key information includes connector types, wire gauge, insulation materials, and dimensional tolerances. The document also lists revision history and compliance notes.
| Connector type (male) | DB9P Male, Nickel plating, Insulator Color: Blue |
|---|---|
| Connector type (female) | DB9P Female, Nickel plating, Insulator Color: Blue |
| Cable gauge | 28 AWG (7/0.12) |
| Wire outer diameter | 0.784 mm |
| Jacket outer diameter | 0.95 mm |
The cable uses 28 AWG wire (7/0.12).
