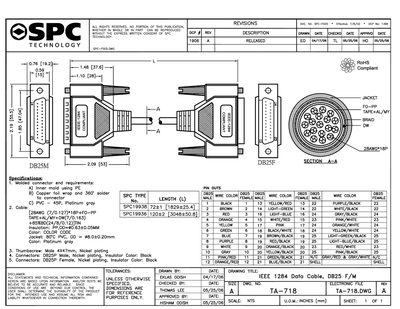

The SPC TA-718 data sheet lists technical details such as connector types, cable color codes, and component dimensions. It also includes compliance notes and revision history for the product.
Key sections cover molded connector end requirements, cable specifications, thumbscrew dimensions, and connector configurations, providing essential information for designers and engineers.
| Male connector type | DB25P Male |
|---|---|
| Thumbscrew size | Male 4x47mm |
The male connector is a DB25P type.
The thumbscrew is a male 4 × 47 mm screw.
