USB Buccaneer® is an IP68 rated USB connector that supports USB 2.0 protocol, with plug and play capability, visual mating indication, shielded system, single and double ended cables, screw coupling, PCB versions, dust and waterproof sealing when mated, low and high speed bus connection, 1.5Mbs to 480Mbs, hot pluggable, standard 4 pole interface, alignment indicator reduces risk of damage during mating, high noise immunity and EMI protection, suitable for PC and peripheral configuration, secure, proven locking system, direct mounting or via adaptor leads
The USB Buccaneer® line from Bulgin provides IP68‑rated USB connectors and cable assemblies for harsh environments. Over‑moulded housings, sealing caps and robust screw coupling give dust and waterproof protection while maintaining USB 2.0 performance.

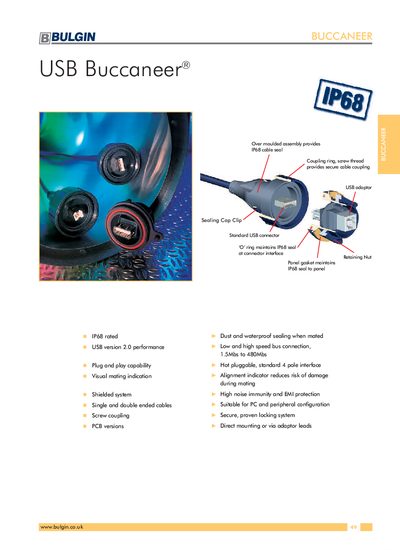

The leaflet lists single‑ended and double‑ended cable assemblies in 2 m, 3 m and 5 m lengths, front‑ and rear‑panel mounting options, and a range of sealing caps. Electrical data such as 1 A current rating, 30 Vac voltage rating, 1,000 mating cycles and material specifications are included.
| IP Rating | IP68 |
|---|---|
| USB Version | 2.0 |
| Current Rating | 1 A |
| Voltage Rating | 30 Vac (RMS) |
| Contact Resistance | <10 mΩ max |
| Mating Cycles | 1,000 |
| Operating Temperature | O°C to +70°C |
| Shell Material | Steel |
| Shell Plating | Nickel |
| Contact Plating | 30 µin Gold |
| Cable Lengths | 2 m, 3 m, 5 m |
They are rated IP68 for dust and waterproof sealing.
Each connector is rated for a maximum current of 1 A.
The connectors support USB version 2.0.
Cable assemblies are available in 2 m, 3 m and 5 m lengths.
