Start here

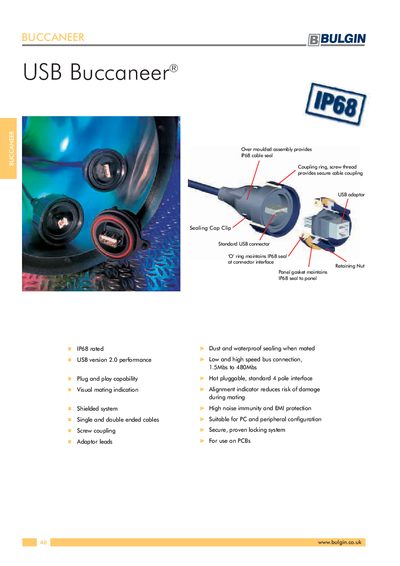

BULGIN BUCCANEER USB Buccaneer IP68 (4)
The Buccaneer® USB product line offers IP68‑rated, plug‑and‑play cable assemblies and panel‑mount connectors for both A and B USB types. Features include visual mating indication, high noise immunity, shielding, and a secure screw‑coupling system.
The document lists part numbers for single‑ended and double‑ended sealed cables (PX0840, PX0841), panel‑mount connectors (PX0842), PCB adaptor leads, and sealing caps. Technical specifications cover electrical ratings, materials, operating temperature, and mating cycles.
Bulgin USB Buccaneer IP68 specifications
| IP Rating | IP68 |
|---|---|
| USB Version | 2.0 |
| Current Rating | 1 A |
| Voltage Rating | 30 V AC (RMS) |
| Contact Resistance | ≤30 mΩ max |
| Operating Temperature | 0 °C to +70 °C |
| Mating Cycles | 1,000 |
| Cable Lengths | 2 m, 3 m, 5 m |
All Bulgin USB Buccaneer IP68 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What IP rating do the Buccaneer USB connectors have?
They are rated IP68 for dust and waterproof sealing.
Which USB version is supported by the Buccaneer connectors?
The connectors support USB version 2.0.
What IP rating do the USB Buccaneer connectors have?
They are rated IP68 for dust and waterproof sealing.
What is the current rating of the connectors?
Each connector is rated for a maximum current of 1 A.
What IP rating do the Buccaneer USB connectors have?
All Buccaneer USB connectors are rated IP68, providing dust and waterproof sealing when mated.
Are the Buccaneer USB connectors hot‑pluggable?
Yes, they support hot plugging with a standard 4‑pole USB interface.
