6153 / 6653 AC Inlet and Outlet - High Current is a high current AC plug and socket produced by Schurter. The product adopts UL 94V-O grade thermoplastic material and can withstand an ambient temperature of 70℃. It has passed UL, CSA, VDE, SEMKO and SEV certifications.

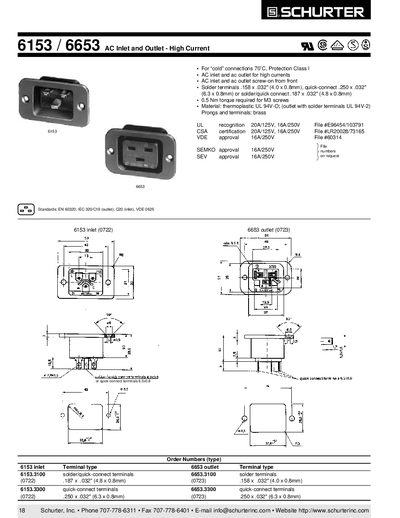

This handbook describes the Schurter 6153 inlet and 6653 outlet series for high‑current AC applications. It lists key features such as cold‑connection protection class (70 °C), required torque for M3 screws (0.5 Nm), and construction materials (thermoplastic UL 94V‑O, brass terminals). The document also details compliance with standards like EN 60320, IEC 320/C19 (outlet) and C20 (inlet), and various certifications (UL, CSA, VDE, SEMKO).\n\nThe guide includes ordering information, terminal dimensions for solder, quick‑connect, and combined terminals, and reference part numbers for plug mates and cordsets. Contact details for Schurter, Inc. are provided for further inquiries.
| Cold‑connection protection class | 70 °C |
|---|---|
| Torque for M3 screws | 0.5 Nm |
| Material (housing) | Thermoplastic UL 94V‑O |
| Terminal material | Brass |
| Standards (outlet) | EN 60320; IEC 320/C19 |
| Solder terminal size | 0.158 × 0.032 in (4.0 × 0.8 mm) |
| Quick‑connect terminal size | 0.250 × 0.032 in (6.3 × 0.8 mm) |
A torque of 0.5 Nm is required for the M3 screws.
Quick‑connect terminals measure 0.250 × 0.032 in (6.3 × 0.8 mm).
The connectors comply with EN 60320, IEC 320/C19 for the outlet, IEC 320/C20 for the inlet, and VDE 0625.
