Buccanneer USB series products have IP68 protection rating, support USB 2.0 version, have plug and play function, use screw connection, cable for single or double end, and equipped with adaptor.

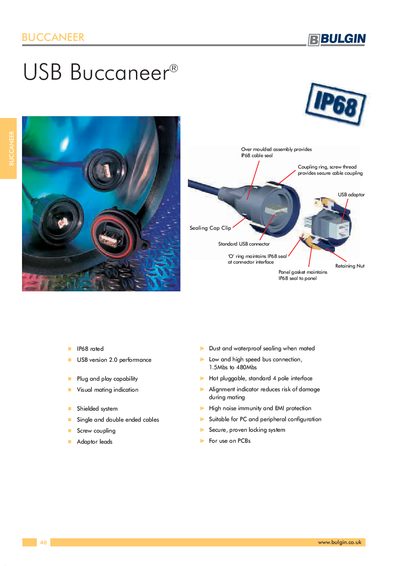

The USB Buccaneer series provides IP68‑rated sealed USB connectors for both A‑type and B‑type applications. Over‑moulded assemblies, coupling rings and sealing caps ensure dust and waterproof protection, while visual alignment indicators help prevent mating damage. Cable assemblies are offered in 2 m, 3 m and 5 m lengths for single‑ended, double‑ended and panel‑mount configurations.
Part numbers such as PX0840, PX0841 and PX0842 identify specific cable and panel‑mount variants, and sealing caps (PX0835, PX0733) maintain the IP68 rating when connectors are not in use. Technical data include current rating, voltage rating, contact resistance, operating temperature, and material specifications for both connectors and cables.
| Voltage rating | 30Vac (RMS) |
|---|---|
| Contact resistance | 30mΩ max |
| Operating temperature | O°C to +70°C |
| Shell plating | Nickel |
| Contact plating | 30 µin Gold |
| Cable jacket material | Glass Filled PBT |
| Flammability rating | UL94V‑0 |
They are rated IP68 for dust and waterproof sealing when mated.
Cable assemblies are offered in 2 m, 3 m and 5 m lengths.
They support USB version 2.0 with low and high speed bus connections.
