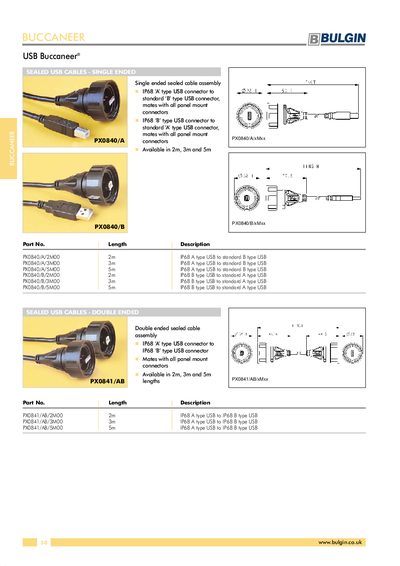

This document is a specification for the Bulgin USB Buccaneer® series of products, including single-headed, double-headed IP68 waterproof USB connection cables for customer selection.
The USB Buccaneer® series from Bulgin provides sealed, IP68‑rated USB cable assemblies for harsh environments. Both single‑ended (A‑type to standard B‑type or B‑type to standard A‑type) and double‑ended (A‑type to B‑type) configurations are offered.
Cables are supplied in 2 m, 3 m and 5 m lengths and mate with all panel‑mount connectors. Part numbers identify the connector orientation and length, e.g., PX0840/A/2M00 for a 2 m A‑to‑B cable.
| Ingress protection rating | IP68 |
|---|---|
| Connector configuration | A‑type USB to standard B‑type USB |
| Connector configuration | B‑type USB to standard A‑type USB |
| Cable lengths | 2 m, 3 m, 5 m |
| Cable assembly type | Single‑ended sealed |
| Cable assembly type | Double‑ended sealed |
The series includes A‑type USB to standard B‑type USB and B‑type USB to standard A‑type USB connectors.
Cables are supplied in 2 m, 3 m and 5 m lengths.
All USB Buccaneer cables have an IP68 rating for protection against dust and water.
