The document describes the features and characteristics of the Buccaneer product, including sealing performance, contact resistance, interface type, connector material, and cable type.

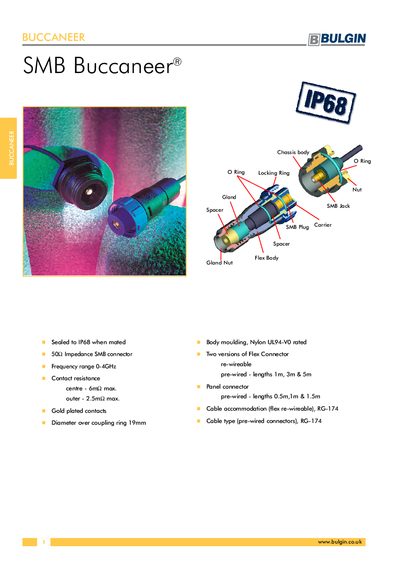

The SMB Buccaneer® is a sealed SMB connector rated IP68 when mated. It features a 50 Ω impedance, a frequency range of 0‑4 GHz, gold‑plated contacts, and a compact 19 mm coupling‑ring diameter. The body is molded from Nylon UL94‑V0 material.
Two connector versions are offered: a re‑wireable flex connector and pre‑wired connectors with RG‑174 cable. Pre‑wired lengths are available in 1 m, 3 m and 5 m, while panel‑mounted versions come in 0.5 m, 1 m and 1.5 m lengths. Part numbers and accessories such as sealing caps and a hand crimp tool are listed.
| Impedance | 50 Ω |
|---|---|
| Frequency range | 0‑4 GHz |
| Contact resistance (centre) | 6 mΩ max |
| Contact resistance (outer) | 2.5 mΩ max |
| Diameter over coupling ring | 19 mm |
| Body material | Nylon UL94‑V0 |
| Sealing rating | IP68 (when mated) |
| Contact finish | Gold plated |
| Supported cable type | RG‑174 |
It has a 50 Ω impedance.
The connector operates from 0 to 4 GHz.
RG‑174 cable is used for the pre‑wired versions.
Lengths of 1 m, 3 m and 5 m are offered.
