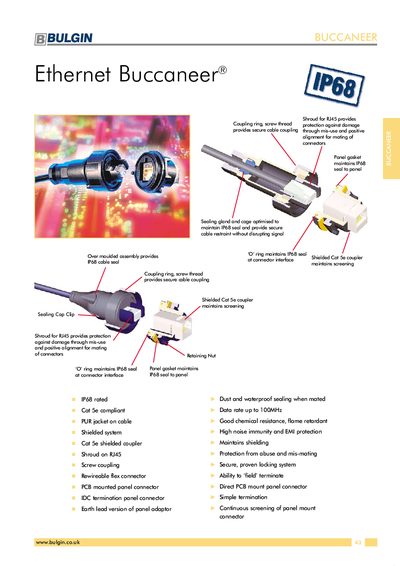

BUCCANEER is a new IP68 rated Ethernet connector from Bulgin, features PUR jacket, shielded system, Cat 5e compliant, screw coupling, rewireable flex connector, PCB mounted panel connector, IDC termination panel connector, earth lead version of panel adaptor, dust and waterproof sealing when mated, data rate up to 100MHz, good chemical resistance, flame retardant, high noise immunity and EMI protection.
The Ethernet Buccaneer® is a panel‑mounted RJ45 connector system offering IP68 protection, Cat 5e performance and robust mechanical design. It is supplied with various part numbers for single‑ended, double‑ended and earth‑lead versions, and supports standard patch‑cord lengths of 2 m, 3 m and 5 m.
The manual details mounting options, sealing gaskets, cable‑gland specifications, electrical and mechanical parameters, and lists accessories such as sealing caps and crimp tools. It also includes part‑number tables, wiring configurations and environmental ratings to aid installation and maintenance.
| IP Rating | IP68 |
|---|---|
| Data Rate | Up to 100 MHz |
| Current Rating | 1.5 A |
| Voltage Rating | 30 V ac, 42 V dc |
| Contact Resistance | ≤10 mΩ |
| Capacitance | 330 pF/km |
| Number of Conductors | 8 |
| Cable Diameter | 6.10 mm |
The Ethernet Buccaneer is rated IP68, providing dust and waterproof sealing when mated.
It supports data rates up to 100 MHz.
Standard patch‑cord lengths are 2 m, 3 m and 5 m.
