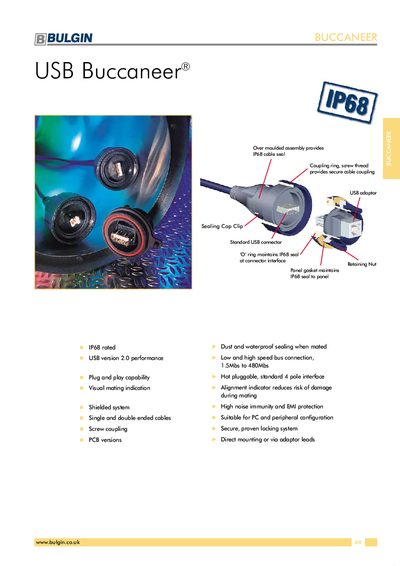

USB Buccaneer® is a range of IP68 rated USB connectors providing both single and double ended cable assemblies and PCB versions for PC and peripheral configuration. They are sealed against dust and water when mated.
The USB Buccaneer series from Bulgin offers IP68‑rated A‑type and B‑type USB connectors for panel‑mount applications. The connectors feature a secure screw‑thread coupling, visual mating indication, and high EMI protection, supporting USB 2.0 low‑ and high‑speed data rates.
The leaflet lists the available part numbers, cable lengths (2 m, 3 m, 5 m), sealing caps for unused connectors, and electrical specifications such as 1 A current rating, 30 V AC voltage rating, and 1,000 mating cycles. Cable constructions, materials, and compliance (RoHS, UL94‑V0) are also detailed.
| Current rating | 1 A |
|---|---|
| Voltage rating | 30 V AC (RMS) |
| Contact resistance | < 10 mΩ max |
| USB performance | USB 2.0 |
| Mating cycles | 1,000 |
| Operating temperature | - °C to +70 °C |
All USB Buccaneer connectors are rated IP68 for dust and waterproof sealing when mated.
The PX0840 series is offered in 2 m, 3 m, and 5 m lengths.
They support USB version 2.0, providing low‑ and high‑speed bus connections from 1.5 Mbps to 480 Mbps.
