This document introduces BULGIN's KT0006, KT0009 and KT0012 Retaining CLIP products, which can prevent the accidental disassembly of IEC connectors.

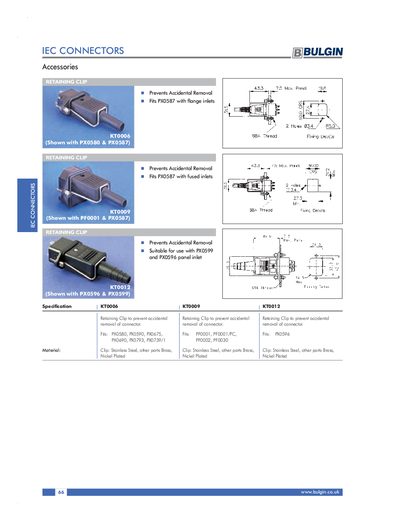

This handbook describes Bulgin IEC connectors KT0006, KT0009 and KT0012, showing their dimensions, fitting options and material construction. It includes diagrams that illustrate the thread‑fixing details and the retaining clip that secures each connector.
Key features include a stainless‑steel retaining clip to prevent accidental removal, brass body parts with a nickel‑plated finish, and compatibility with a range of Bulgin panel inlets such as PXO580, PXO590, PX0675, PX0690, PXO793 and others.
| Retaining Clip | Prevents accidental removal |
|---|---|
| Fit (KT0006) | PXO580, PXO590, PX0675, PX0690, PXO793, PXO739/1 |
| Fit (KT0009) | PFOOO1, PFOOO1/PC, PFOOO2, PFOOO3O |
| Clip Material | Stainless Steel |
| Other Parts Material | Brass |
| Finish | Nickel Plated |
Each connector is equipped with a retaining clip that locks the connector in place.
The KT0009 fits panel inlets PFOOO1, PFOOO1/PC, PFOOO2 and PFOOO3O.
The retaining clip is made of stainless steel, while the other parts are brass with a nickel‑plated finish.
